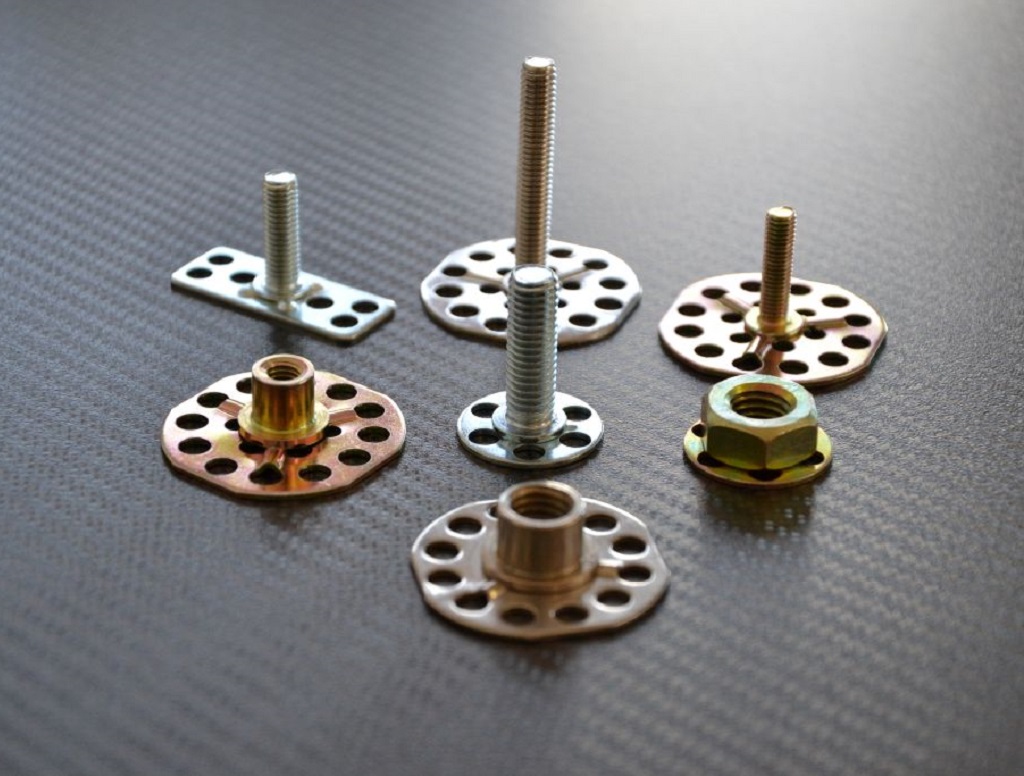

Fasteners

Our fasteners achieve clean bonds and transfer of force to plastic components by means of light embedding, casting, pressing in or using adhesives.

Fasteners are used, for example, with CFRP and GFRP composites, SMC and BMC components, foam plastics, elastomers and rubbers.

Our fasteners are made from mild steel and are galvanised and passivated, or are available in stainless steel 316/S16 with internal or external threads. They consist of a wide variety of perforated base plates with welded set screws or nuts, of differing lengths and diameters.

Standard base plates (F and M types)

Designation

Shape

Dimensions

B19

round

Ø 19mm

B23

round

Ø 23mm

B30

square

30x30mm

B38

round

Ø 38mm

T38

rectangular

15x38mm

Sighted base plates (only F types)

Designation

Shape

Dimensions

S19

round

Ø 19mm

S23

round

Ø 23mm

S30

square

30x30mm

S38

round

Ø 38mm

ST38

rectangular

15x38mm

Fastener types

Type M1

Thread

Thread length [mm]

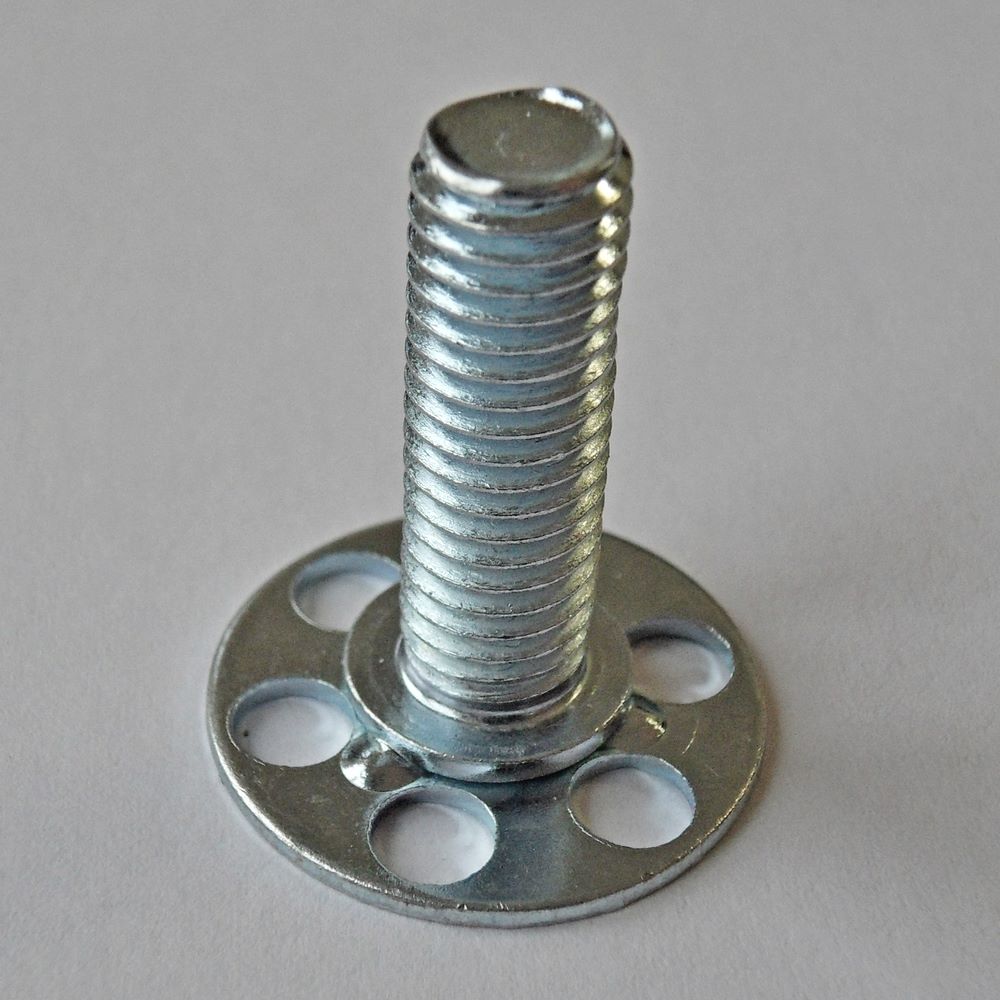

Male threaded stud

M4


M5


M6


M8


M10

12


16


20


25


30


40


50


60


75

Befestigungselemente bewerkstelligen saubere Verbindungen und Krafteinleitungen an Kunststoffteilen

Type F1

Thread

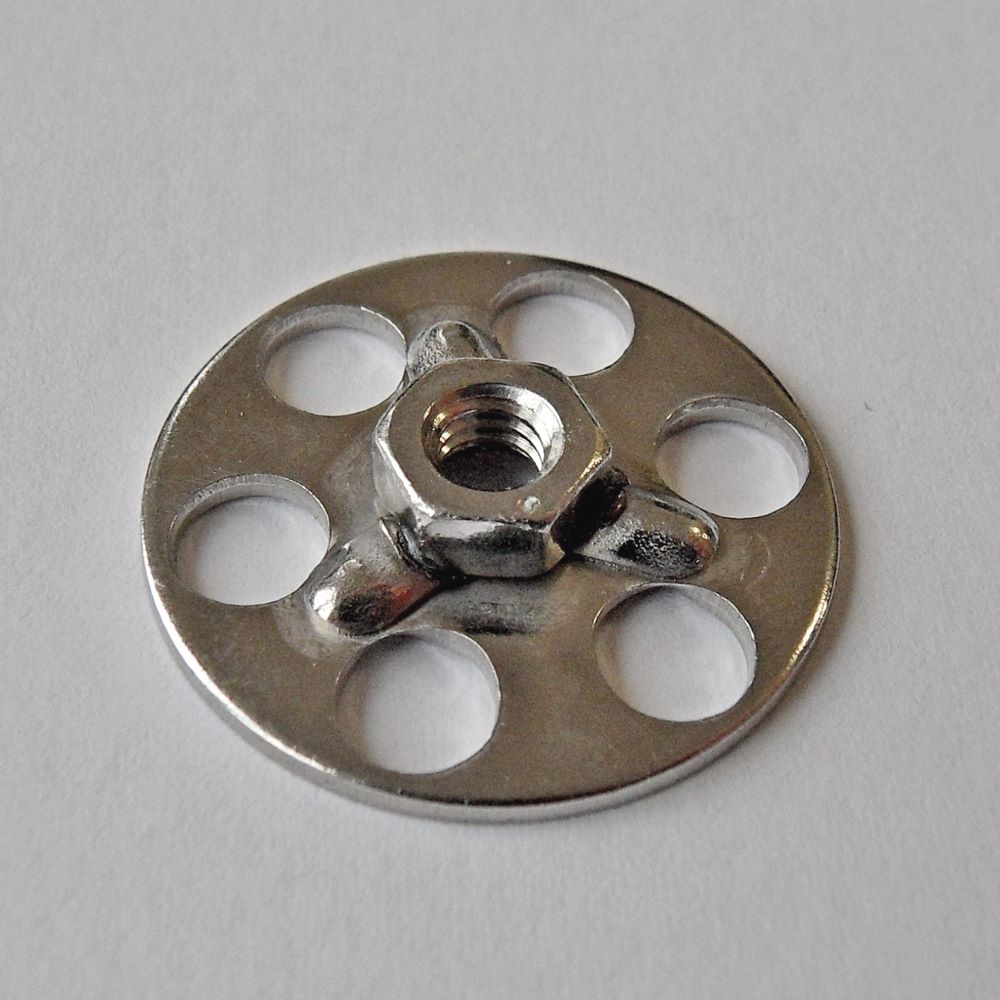

Female hexagonal nut

M3


M4


M5


M6


M8


M10


Bighead oder Befestigungselemente für  CFK und GFK Faserverbundwerkstoffe

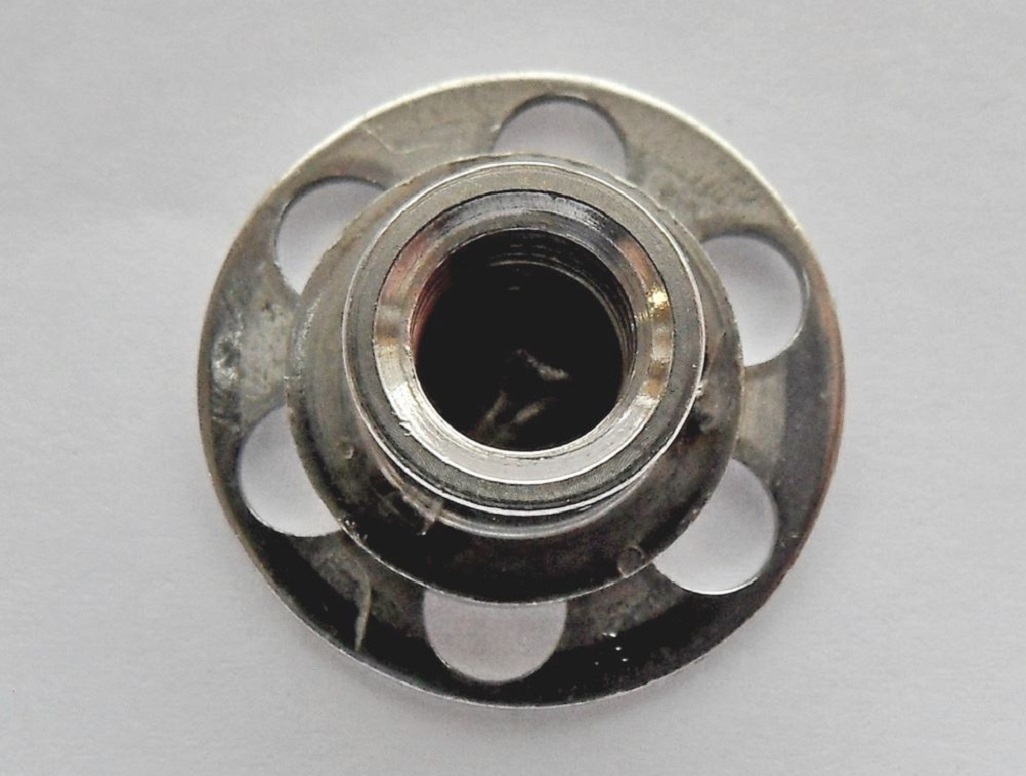

Type F2

Thread

Thread length [mm]

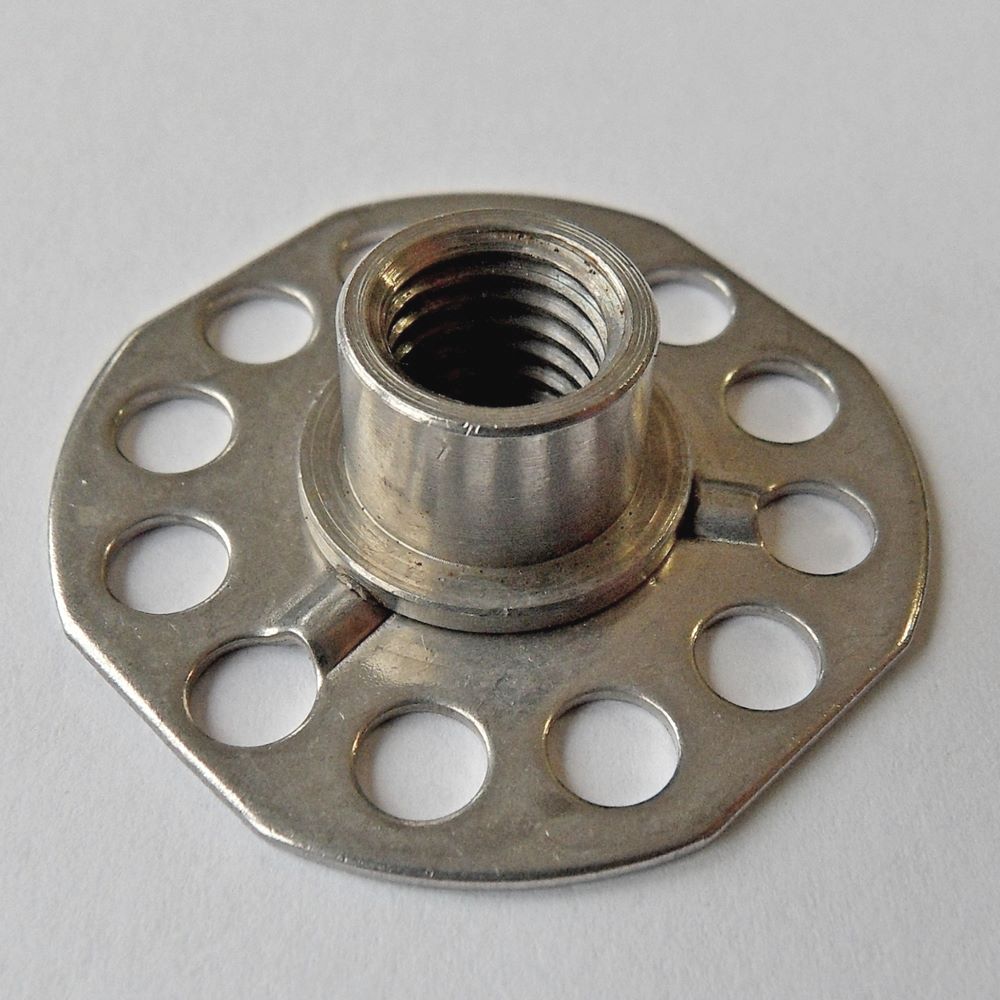

Female threaded collar

M4


M5


M6


M8


M10

5


10


12


14


16


22


30

Befestigungselement no name oder Bighead

Type M4

Bolt length

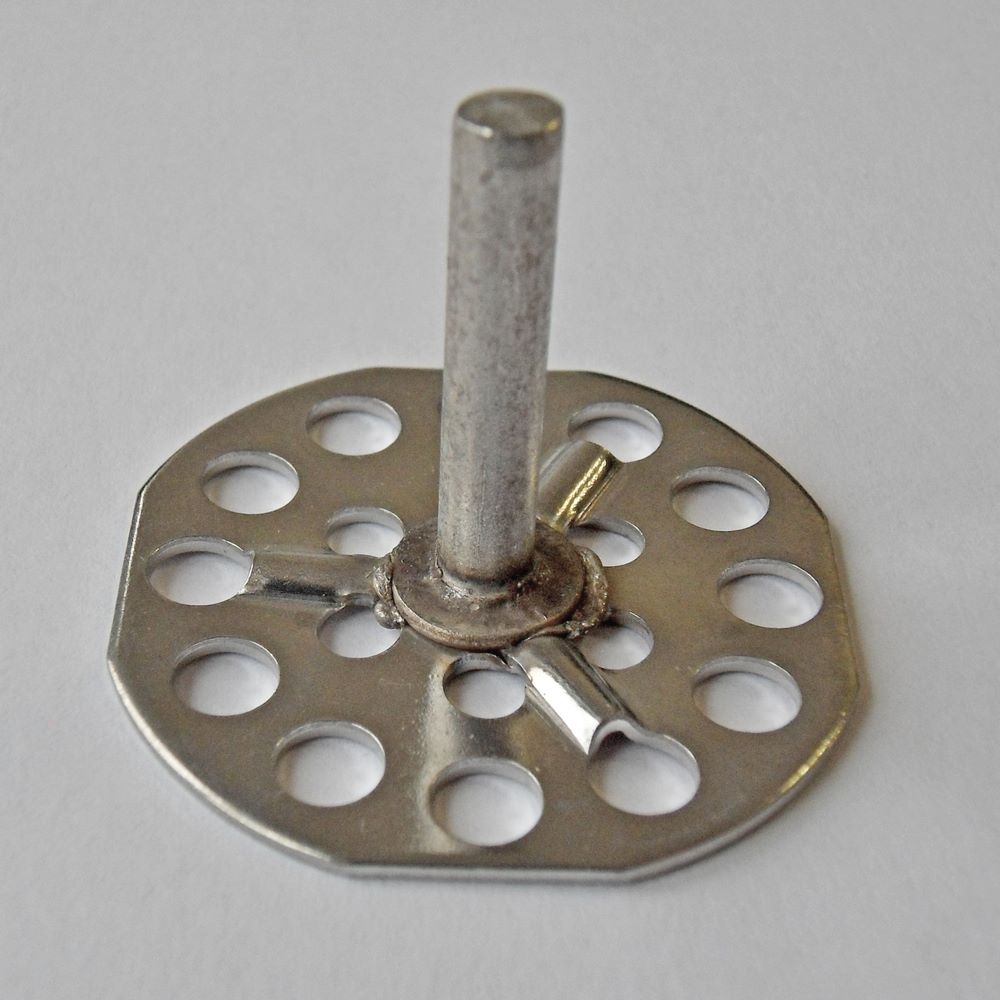

Male plain pin

12


16


20


25


30


40


50


60


75


Befestigungselement no name oder Bighead
